Solid Optics 100G QSFP28 transceivers

On backorder – delivery in ± 5 business days
Distance
Coding

Pick the vendor of your switch or router, for example Juniper. We code the module for that platform before shipping, at no extra cost. MSA (Generic) is for equipment without a vendor check.

Available coded for 21 vendors

Cisco, Juniper, Brocade, Arista, Huawei, HPE, Aruba (HPE), Dell, Extreme, Nokia, Mellanox/NVIDIA, Alcatel-Lucent, Fortinet, Palo Alto Networks, Ciena, Calix, MikroTik, Ubiquiti, Netgear, D-Link and Allied Telesis. Vendor not listed? Ask us.

Configuration
Distance
80 km
SKU
QSFP-100G-ZR4-LC-SO
Specifications
General
Form factor
QSFP28
Data rate
100 Gb/s
Standard
100GBASE-ZR4
Media
OS2 (single-mode)
Connector
LC duplex
Reach
80 km
DOM/DDM
Yes
Optical
Wavelength
1295.56/1300.05/1304.58/1309.14 nm
TX power
2 to 6.5 dBm
RX sensitivity
-28 dBm
RX overload
5.5 dBm
Power budget
30 dB
Environment
Operating temperature
0 to 70 °C (COM)
Download datasheet (PDF)
2 100,00 €
excl. VAT

2 541,00 € incl. VAT

Pricing is based on your current configuration.

On backorder – delivery in ± 5 business days
1

Nxt-Level Service

We offer same-day delivery and installation to keep your infrastructure up and running without delay.

Same-day Amsterdam

≤ 45km from Almere

We deliver to datacenters at Science Park, Zuidoost and Schiphol-Rijk, incl. Equinix, Digital Realty, Nikhef and Maincubes.

Same-day NL

> 45km from Almere

Urgent delivery available for other datacenters or customer sites.

Optics from Solid Optics

  • Lifetime warranty from Solid Optics on every transceiver
  • A test report with every unit
  • Tested on the platform the optic is meant for
  • Not sure? We test on your equipment first
  • Ships from Almere, same-day delivery in Amsterdam available
See our services →

Coded per vendor

Same transceiver, pre-coded for your platform. Each vendor shows the original part number it replaces.

Which 100G QSFP28 do you need?

All these versions are for single-mode fiber (OS2). Pick the smallest reach that covers your distance: an optic that is too strong for a short link needs an attenuator.

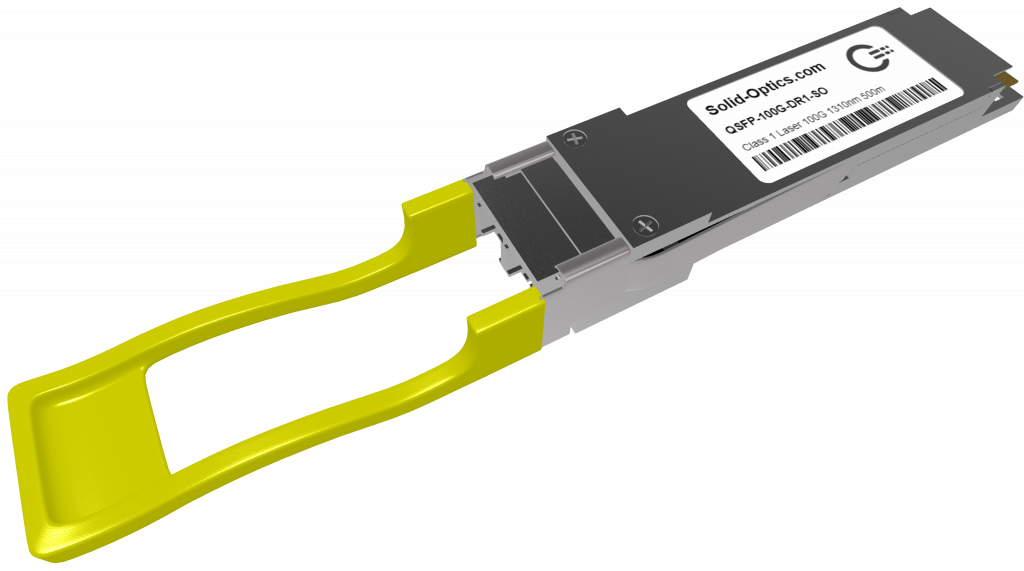

  • DR: single-mode fiber (OS2), up to 500 m, 1310 nm
  • LR4: single-mode fiber (OS2), up to 10 km

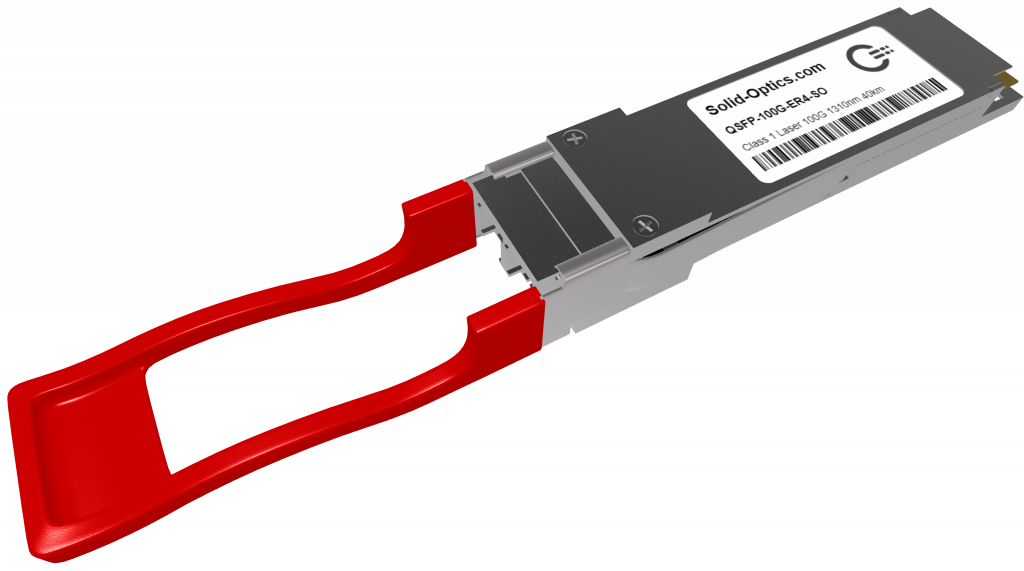

  • ER4: single-mode fiber (OS2), up to 40 km
  • ER4+: single-mode fiber (OS2), up to 40 km
  • ZR4: single-mode fiber (OS2), up to 80 km

No fiber needed, or only one fiber? Then look at 100G BiDi (only one fiber free), 100G DAC cable (within the rack, up to 5 m).

QSFP28-100G: all versions

VersionStandardReachWavelengthMediaPrice excl. VAT
QSFP-100G-DR1100GBASE-DR500 m1310 nmOS2235,00 €Backorder
QSFP-100G-LR4-LC100GBASE-LR410 km—OS2350,00 €Backorder
QSFP-100G-ER4-LC100GBASE-ER440 km—OS21 050,00 €Backorder
QSFP-100G-ER4PLUS-LC100GBASE-ER4+ (40 km)40 km—OS21 495,00 €Backorder
QSFP-100G-ZR4-LC100GBASE-ZR480 km—OS22 100,00 €Backorder
